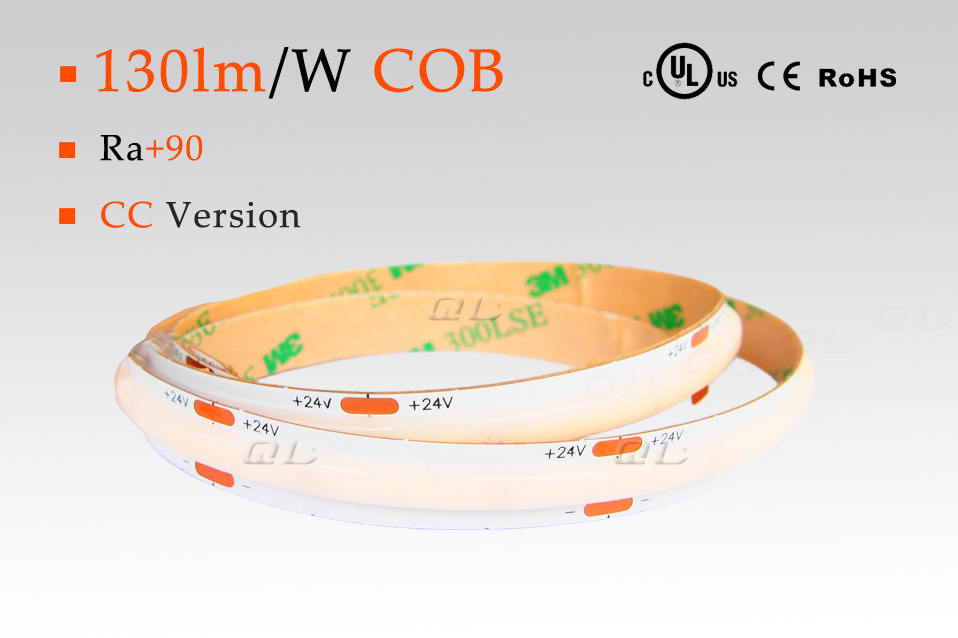

130lm/W COB LED Strips

LED Type: CRI90+ COB LED
Input Voltage: DC24V
Color: Warm White (2700K/3000K), Nature White, Pure White
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
Cutting: 45.45mm and 50mm
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
Comply with the European ErP Ecodesign regulation.

 Features
undefined

● COB Version, no light spot!


● 130lm/W high efficacy version.


Features of QL Temperature Sensor Constant Current Strips:


● Constant current version: with stable current, suitable for high quality requirements project.


● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.


● Can work with unstable power supply and without damage.


● With temperature Sensor: Can lower the current to protect itself when the temperature is too high.


● Brightness uniform: With same brightness from the first end to the last end for around 10m.


● DC24V version: can work with DC20V to DC30V Input


● DC 12V version: can work with DC10V to DC15V Input


 Parameters

undefined

Model   No.LEDVoltageCuttingCRI(Ra)PCB
    Size
Water
    proof
Color(CT:K) lumen
    (lm/m)
Energy
    efficiency
    class
PowerCC/CV
QL-F0603X160SA-WW-24C-COB10HE320
    LED
DC24V

    9W/m
50
    mm

90
    CC Version
10mmIP20
    IP67
Warm   White2700K1000-1030130W/m

    E
QL-F0603X160SA-W-24C-COB10HEWarm   White3000K1040-1080
QL-F0603X160SA-N-24C-COB10HENature White4000K1080-1120
QL-F0603X160SA-P-24C-COB10HEPure   White6500K1120-1170
QL-F0603X154SA-WW-24C-COBHE308
    LED
DC24V

    10W/m
45.45
    mm

90
    CV Version
8mmIP20
    IP67
Warm   White2700K900-950110W/m

    F
QL-F0603X154SA-W-24C-COBHEWarm   White3000K950-1000
QL-F0603X154SA-N-24C-COBHENature White4000K1000-1050
QL-F0603X154SA-P-24C-COBHEPure   White6500K1050-1100
QL-F0603X154SA-WW-24C-COB10HE308
    LED
DC24V
    15W/m
45.45
    mm

90
    CV Version
10mmIP20
    IP67
Warm   White2700K1350-1400110W/m

    F
QL-F0603X154SA-W-24C-COB10HEWarm   White3000K1400-1450
QL-F0603X154SA-N-24C-COB10HENature White4000K1450-1550
QL-F0603X154SA-P-24C-COB10HEPure   White6500K1550-1650
Remark: X is for Waterproof type. A for   Non-waterproof,  C for IP67

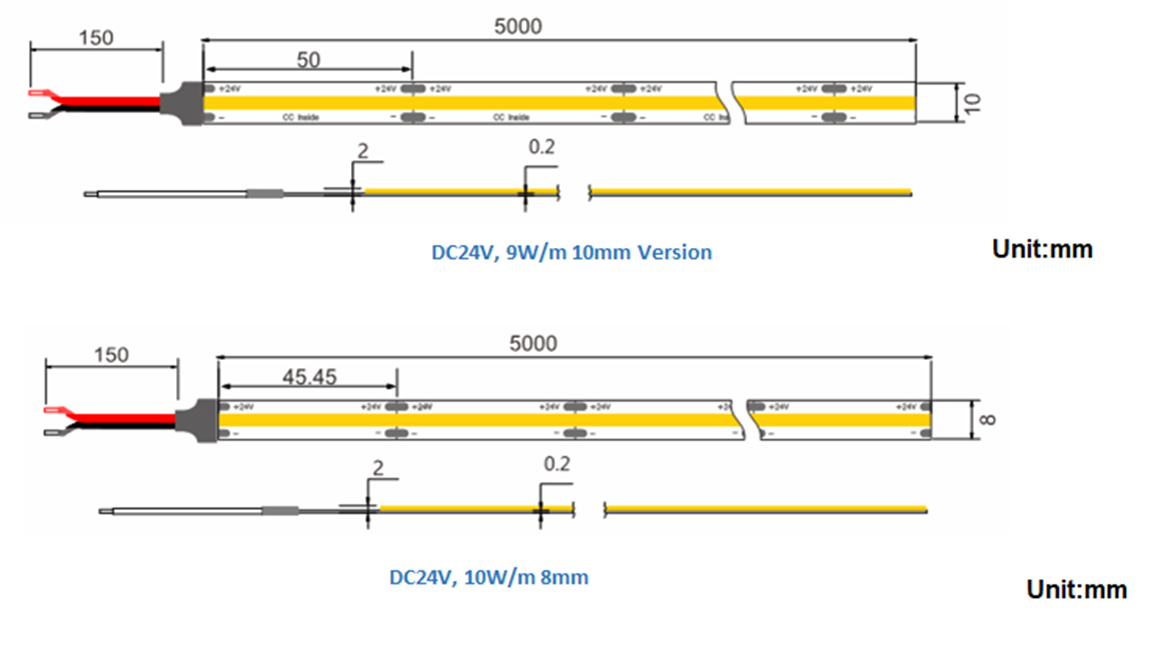

 Drawings

undefined

undefined

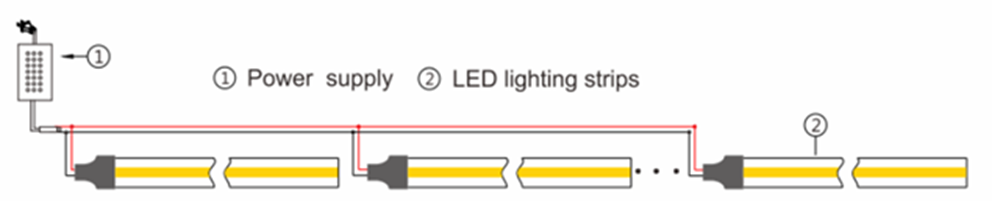

 Connections

undefined


undefined


※ Testing Report for Color Rendering

undefined

undefined

 Accessories
undefined


undefined

 Different  Waterproof  Version
undefined

undefined

 Packing
