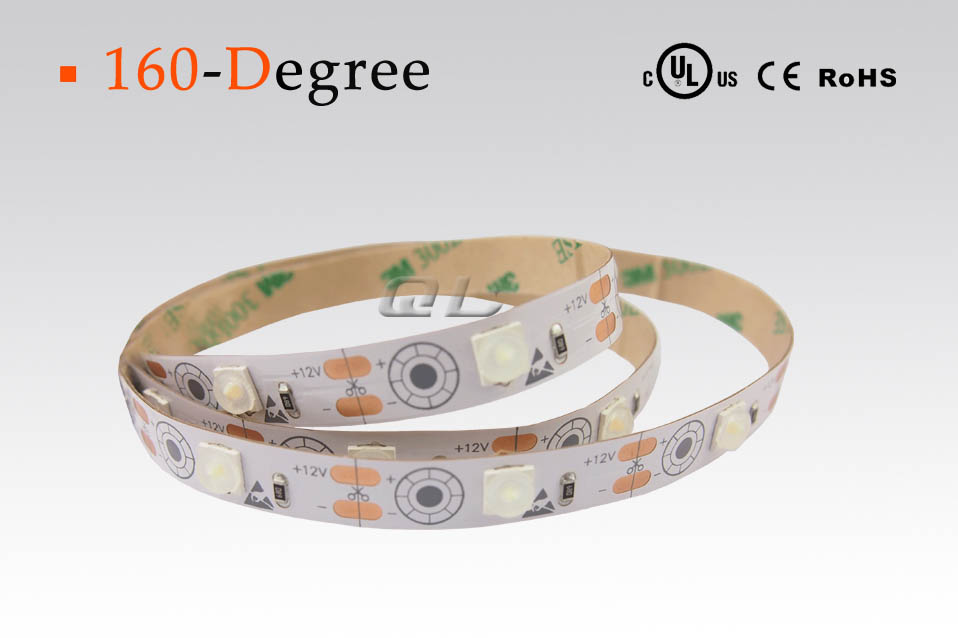

LED Type: 160 degree LED
Input Voltage: DC12V and DC24V
Color: Warm White, Nature White, Pure White
LED Qty: 28LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
With 160 degree lense, the light will be more comfortable!
※ Parameters
| Model No. | LED Type | LED Qty | Power (W/m) | Volt- age | CRI (Ra) | PCB Width | Cut (mm) | Water- proof | Color | (CT:K) | Lumen (lm/m) |
| QL-5050A14-W-12-160 | 160 Degree LED | 28 | 16.5W | 12V | ≥80 | 10mm | 35.7 | IP20 | □Warm White | 3000-3500K | 1450-1500 |
| QL-5050A14-N-12-160 | □Nature White | 4000-4500K | 1500-1550 | ||||||||
| QL-5050A14-P-12-160 | □Pure White | 6000-6500K | 1550-1600 | ||||||||
| QL-5050A14-W-24-160 | 28 | 16.5W | 24V | ≥80 | 10mm | 71.42 | IP20 | □Warm White | 3000-3500K | 1450-1500 | |
| QL-5050A14-N-24-160 | □Nature White | 4000-4500K | 1500-1550 | ||||||||
| QL-5050A14-P-24-160 | □Pure White | 6000-6500K | 1550-1600 |

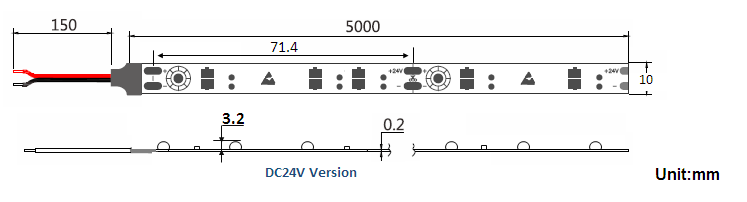

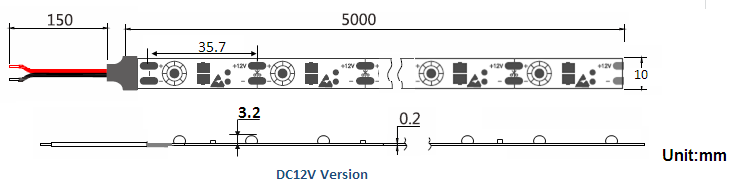

※ Drawings
※ Connections of Single-Color
※ Accessories of Single-Color
※ Different Waterproof Version
※ Packing
