prevnext: 2-LED-Cut LED Strips

LED Type: CRI≥90 SMD5050
Input Voltage: DC12V
Color: White, Red, Green, Blue, Yellow
LED Qty: 60LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68 Version

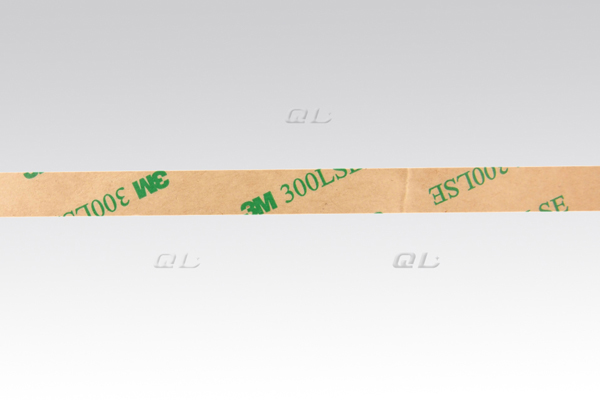

With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

Inquiry Wow Customer Question

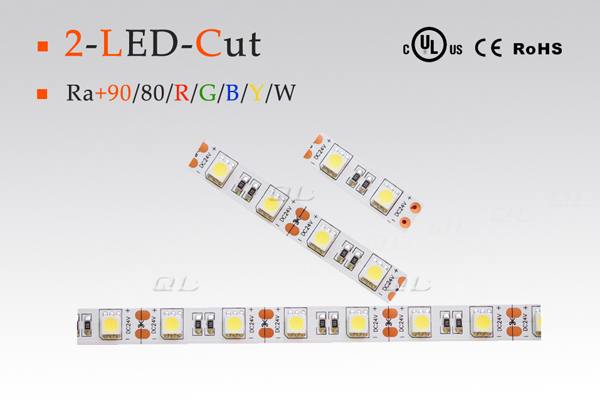

※ Features of 2-LED-Cutting Strips

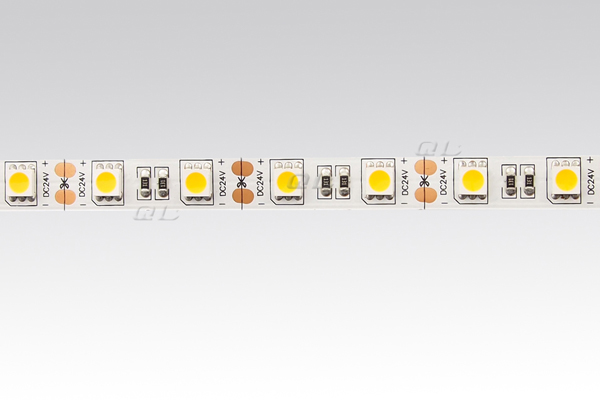

Every two LED can be cut. The strips can be cut to a specific size for special application

※ Parameters

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm) /(CT:K)	Lumen (lm/m)

CRI≥90 Version
QL-F5050X30SA-P-24-2P	5050	60	DC24V	14.4W/m	10mm	IP20 IP54 IP67 IP68	≥90	Pure White	6000-7000K	1300-1400
QL-F5050X30SA-N-24-2P								Nature White	4000-4500K	1200-1300
QL-F5050X30SA-W-24-2P								Warm White	3000-3500K	1100-1200
QL-F5050X30SA-WW-24-2P									2500-2700K	1000-1100
CRI≥80
QL-F5050X30-P-24-2P	5050	60	DC24V	14.4W/m	10mm	IP20 IP54 IP67 IP68	≥80	Pure White	6000-7000K	1200-1300
QL-F5050X30-N-24-2P								Nature White	4000-4500K	1100-1200
QL-F5050X30-W-24-2P								Warm White	3000-3500K	1000-1100
QL-F5050X30-WW-24-2P									2500-2700K	950-1000
QL-F5050X30-VW-24-2P									2200-2400K	900-950
QL-F5050X30-R-24-2P							/	Red	620-630	450-500
QL-F5050X30-Y-24-2P								Yellow	585-595	450-500
QL-F5050X30-B-24-2P								Blue	455-470	300-320
QL-F5050X30-G-24-2P								Green	510-525	900-1000
Remark: X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone, C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue
