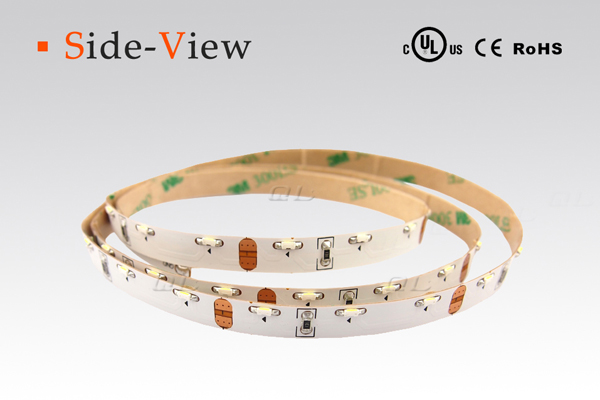

LED Type: Side View SMD335
Input Voltage: DC12V/DC24V
Color: White, Red, Green, Blue, Yellow
LED Qty: 60LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Parameters
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Size | Water proof | Color | λ(Nm) /(CT:K) | Lumen (lm/m) |
| QL-F335X30-P-12/24 | 335 | 60 | DC12V DC24V | 4.8W/m | 8mm | IP20 IP67 | Pure White | 6000-7000K | 400-430 |
| QL-F335X30-N-12/24 | Nature White | 4000-4500K | 370-400 | ||||||
| QL-F335X30-W-12/24 | Warm White | 2200-3500K | 340-370 | ||||||
| QL-F335X30-R-12/24 | Red | 620-630 | 140-150 | ||||||
| QL-F335X30-Y-12/24 | Yellow | 585-595 | 140-150 | ||||||
| QL-F335X30-B-12/24 | Blue | 455-470 | 100-110 | ||||||
| QL-F335X30-G-12/24 | Green | 510-525 | 270-280 | ||||||
| Remark: X is for Waterproof type. A for IP20 non-waterproof version, C for IP67 with silicone tube | |||||||||

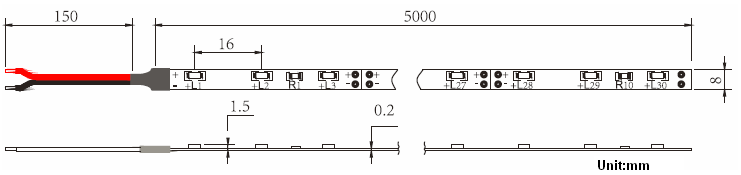

※ Drawings

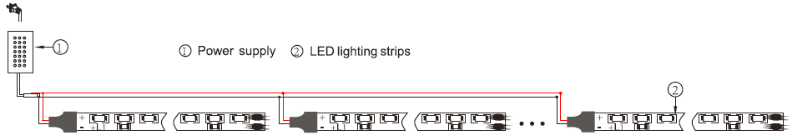

※ Connections
※ Accessories
※ Different Waterproof Version
※ Packing
