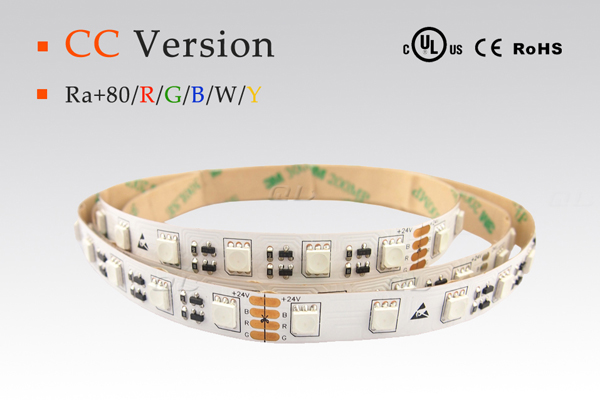

prevnext: Colored 5050 CC LED Strips

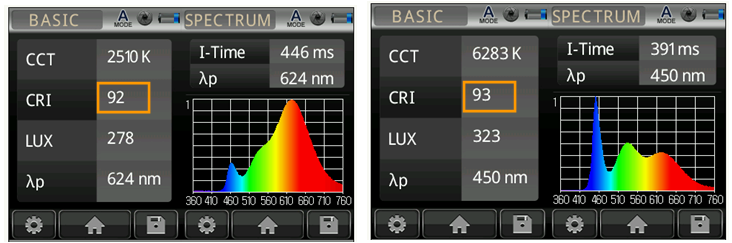

LED Type: CRI≥90(80) SMD5050
Input Voltage:DC12V/DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 30LED/m, 60LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68 Version
With 3M 300 strong adhesiv

Inquiry Wow Customer Question

※ Features

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable

※ Parameters for CRI≥90 CC Version

Model No.	LED Type	LED Qty (pcs)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm) /(CT:K)	Lumen (lm/m)

CRI≥90, DC24V Input Temperature Sensor Constant Current Version
QL-F5050X30SA-P-24C	5050	60	DC24V	14.4W/m	10mm	IP20 IP54 IP67 IP68	≥90	Pure White	6000-7000K	1300-1400
QL-F5050X30SA-N-24C								Nature White	4000-4500K	1200-1300
QL-F5050X30SA-W-24C								Warm White	3000-3500K	1100-1200
QL-F5050X30SA-WW-24C									2500-2700K	1000-1100
Remark: X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone, C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue

※ Parameters for CRI≥80 CC Version

Model No.	LED Type	LED Qty (pcs)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm) /(CT:K)	Lumen (lm/m)

DC24V Input Temperature Sensor Constant Current Version
QL-F5050X30-C-24C	5050	60	DC24V	14.4W/m	12mm	IP20 IP54 IP67 IP68	/	RGB	R:620-625nm	700-720
									G:520-525nm
									B:465-470nm
QL-F5050X30-P-24C					10mm		≥80	Pure White	6000-7000K	1200-1300
QL-F5050X30-N-24C								Nature White	4000-4500K	1100-1200
QL-F5050X30-W-24C								Warm White	3000-3500K	1000-1100
QL-F5050X30-WW-24C									2500-2700K	950-1000
QL-F5050X30-VW-24C									2200-2400K	900-950
QL-F5050X30-B-24C							/	Blue	B:465-470nm	300-320
QL-F5050X30- G-24C								Green	G:520-525nm	900-1000
Remark: X is for Waterproof type. A for IP20 non-waterproof version, S for IP54 single-sided glued with silicone, C for IP67 with silicone tube, D for IP68 with silicone tube and silicone glue
