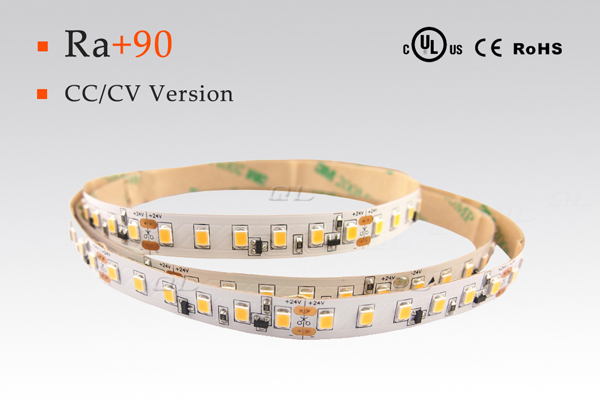

LED Type: CRI≥90 SMD2835
Input Voltage: DC12V/DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty: 60LED/m, 120LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
Features of QL Temperature Sensor Constant Current Strips:
● Constant current version: with stable current, suitable for high quality requirements project.
● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.
● Can work with unstable power supply and without damage.
● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.
● Brightness uniform: With same brightness from the first end to the last end for around 10m.
● DC24V version: can work with DC20V to DC30V Input
● DC 12V version: can work with DC10V to DC15V Input
※ Parameters for CC Version
Model No. | LED Type | LED Qty (pcs) | Work Voltage | Power | PCB Size | Water proof | CRI | Color | λ(Nm) /(CT:K) | Lumen (lm/m) |
CRI≥90, DC24V Input Temperature Sensor Constant Current Version | ||||||||||
QL-F2835X30SA-WW-24C | 2835 | 60 | DC24V | 14.4W/m | 10mm | IP20 IP67 | ≥90 | Warm White | 2500-2700K | 900-950 |
QL-F2835X30SA-W-24C | 3000-3500K | 950-1000 | ||||||||
QL-F2835X30SA-N-24C | Nature White | 4000-4500K | 1000-1050 | |||||||
QL-F2835X30SA-P-24C | Pure White | 6000-7000K | 1050-1100 | |||||||
QL-F2835X60SA-WW-24C | 2835 | 120 | DC24V | 19.2W/m | 10mm | IP20 IP67 | ≥90 | Warm White | 2500-2700K | 1450-1500 |
QL-F2835X60SA-W-24C | 3000-3500K | 1500-1600 | ||||||||
QL-F2835X60SA-N-24C | Nature White | 4000-4500K | 1600-1700 | |||||||
QL-F2835X60SA-P-24C | Pure White | 6000-7000K | 1700-1800 | |||||||
Remark: X stands for waterproof version, A for IP20 non-waterproof version, C for IP67 version with silicone tube |
※ Parameters for CV Version
Model No. | LED Type | LED Qty (pcs) | Work Voltage | Power | PCB Size | Water proof | CRI | Color | λ(Nm) /(CT:K) | Lumen (lm/m) |
CRI≥90, Constant Voltage Version | ||||||||||
QL-F2835X30SA-WW-12/24 | 2835 | 60 | DC12V DC24V | 14.4W/m | 10mm | IP20 IP67 | ≥90 | Warm White | 2500-2700K | 900-950 |
QL-F2835X30SA-W-12/24 | 3000-3500K | 950-1000 | ||||||||
QL-F2835X30SA-N-12/24 | Nature White | 4000-4500K | 1000-1050 | |||||||
QL-F2835X30SA-P-12/24 | Pure White | 6000-7000K | 1050-1100 | |||||||
QL-F2835X60SA-WW-12/24 | 2835 | 120 | DC12V DC24V | 19.2W/m | 10mm | IP20 IP67 | ≥90 | Warm White | 2500-2700K | 1450-1500 |
QL-F2835X60SA-W-12/24 | 3000-3500K | 1500-1600 | ||||||||
QL-F2835X60SA-N-12/24 | Nature White | 4000-4500K | 1600-1700 | |||||||
QL-F2835X60SA-P-12/24 | Pure White | 6000-7000K | 1700-1800 | |||||||
Remark: X stands for waterproof version, A for IP20 non-waterproof version, C for IP67 version with silicone tube |
※ Testing Report for Color Rendering

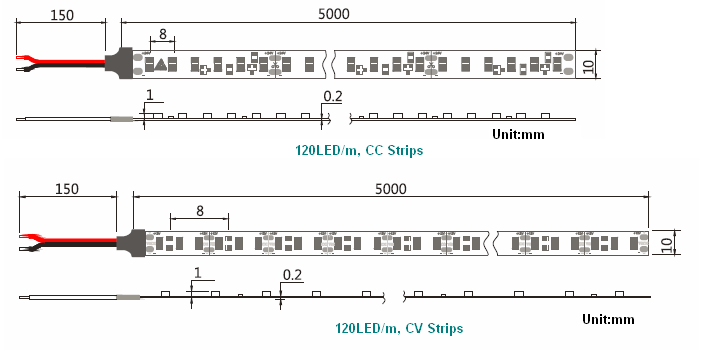

※ Drawings
※ Connections
※ Accessories
※ Different Waterproof Version
※ Packing
