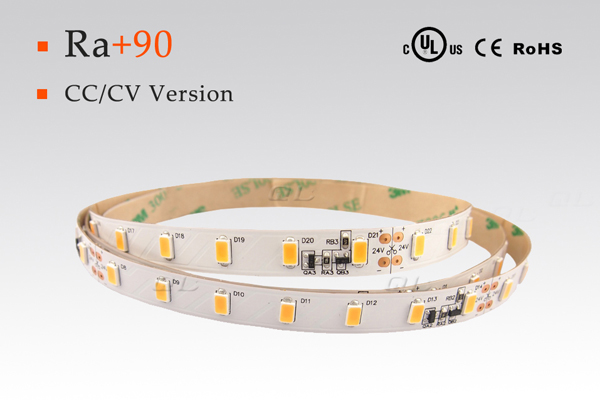

Ra+90 5630 LED Strips|5630 LED Strips|

Address: 5F, BLDG A, Huilongda Ind. Zone, Shilongzai, Shiyan Town, Baoan Dist., Shenzhen, Guangdong, China

Tel: +86-755-29682086

Fax: +86-755-29682109

Skype: qlsales

prevnext: Ra+90 5630 LED Strips

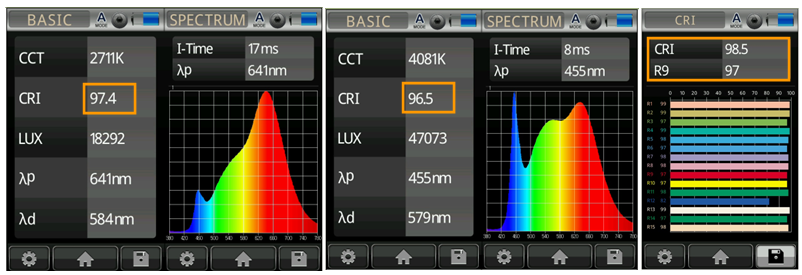

LED Type: CRI≥90 SMD5630
Input Voltage: DC12V/DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White

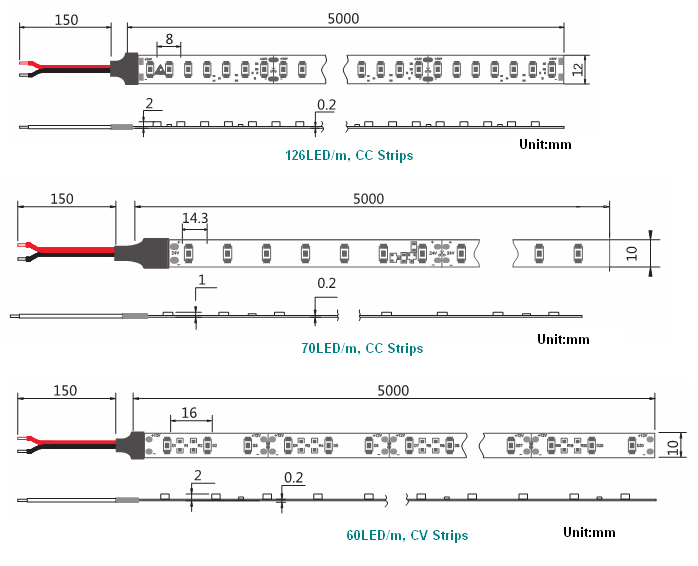

LED Qty: 60LED/m, 70LED/m, 126LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP67 Version
IP20: Non-waterproof Version
IP67: With Silicone Tube
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

Inquiry Wow Customer Question

※ Features

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

※ Parameters for CC Version

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm) /(CT:K)	Lumen (lm/m)

CRI≥90, DC12V/DC24V Input Temperature Sensor Constant Current Version
QL-F5630X30SA-WW-12C	5630	60	DC12V	14.4W/m	10mm	IP20 IP67	≥90	Warm White	2500-2700K	1200-1250
QL-F5630X30SA-W-12C									3000-3500K	1250-1300
QL-F5630X30SA-N-12C								Nature White	4000-4500K	1350-1400
QL-F5630X30SA-P-12C								Pure White	6000-7000K	1450-1500
QL-F5630X35SA-WW-24C	5630	70	DC24V	15W/m	10mm	IP20 IP67	≥90	Warm White	2500-2700K	1400-1450
QL-F5630X35SA-W-24C									3000-3500K	1450-1500
QL-F5630X35SA-N-24C								Nature White	4000-4500K	1500-1550
QL-F5630X35SA-P-24C								Pure White	6000-7000K	1550-1600
QL-F5630X63SA-WW-24C	5630	126	DC24V	22W/m	12mm	IP20 IP67	≥90	Warm White	2500-2700K	1900-2000
QL-F5630X63SA-W-24C									3000-3500K	2000-2100
QL-F5630X63SA-N-24C								Nature White	4000-4500K	2100-2200
QL-F5630X63SA-P-24C								Pure White	6000-7000K	2200-2300
Remark: X stands for waterproof version, A for IP20 non-waterproof version, C for IP67 version with silicone tube

※ Parameters for CV Version

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm) /(CT:K)	Lumen (lm/m)

CRI≥90 Version, Constant Voltage Version
QL-F5630X30SA-WW-12/24	5630	60	DC12V DC24V	14.4W/m	10mm	IP20	≥90	Warm White	2500-2700K	1200-1250
QL-F5630X30SA-W-12/24									3000-3500K	1250-1300
QL-F5630X30SA-N-12/24								Nature White	4000-4500K	1350-1400
QL-F5630X30SA-P-12/24								Pure White	6000-7000K	1450-1500
Remark: X stands for waterproof version, A for IP20 non-waterproof version, C for IP67 version with silicone tube
