prevnext: Ra+95/90 S-Type LED Strips

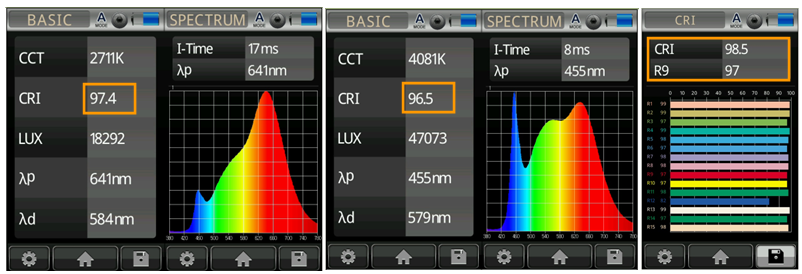

LED Type: CRI≥95/90 SMD3528
Input Voltage: DC12V/DC24V
Color: Warm White, Pure White, Nature White
LED Qty: 60LED/m
Beam Angle: 120 degree
IP Ratio: IP20 Version
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

Inquiry Wow Customer Question

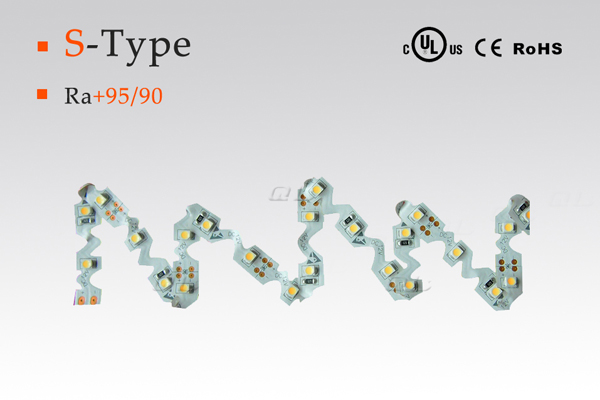

※ Features of S-Type Strips

It can be bended to be different shape. Especially suitable for signage lighting

※ Parameters

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm) /(CT:K)	Lumen (lm/m)

CRI≥95
QL-F3528X30SA-P-12/24-BD95	3528	60	DC12V DC24V	7.2W/m	10mm	IP20 IP54 IP67 IP68	≥95	Pure White	6000-7000K	600-650
QL-F3528X30SA-N-12/24-BD95								Nature White	4000-4500K	550-600
QL-F3528X30SA-W-12/24-BD95								Warm White	3000-3500K	500-550
QL-F3528X30SA-WW-12/24-BD95									2500-2700K	500-530
CRI≥90
QL-F3528X30SA-P-12/24-BD	3528	60	DC12V DC24V	7.2W/m	10mm	IP20 IP54 IP67 IP68	≥90	Pure White	6000-7000K	650-700
QL-F3528X30SA-N-12/24-BD								Nature White	4000-4500K	600-650
QL-F3528X30SA-W-12/24-BD								Warm White	3000-3500K	550-600
QL-F3528X30SA-WW-12/24-BD									2500-2700K	500-550
Remark: X stands for waterproof version, A for IP20 non-waterproof version, C for IP67 version with silicone tube
