LED Type: CRI≥90 SMD3528
Input Voltage: DC12V/24V
Color: 2500K+6500K
LED Qty: 120LED/m
Beam Angle: 120 degree
IP Ratio: IP20, IP54, IP67, IP68 Version
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

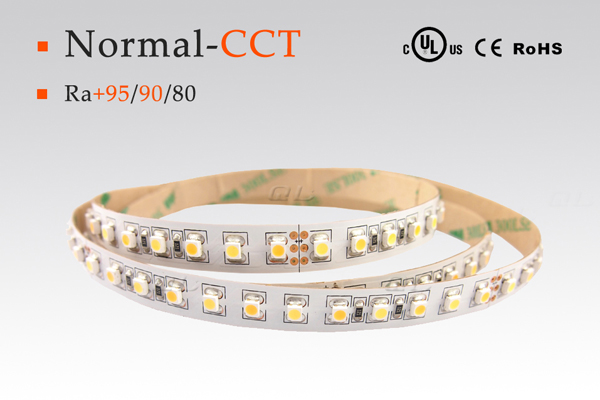

※ Features of CCT Adjustable Strips
Color Temperature adjustable. you can choose any color from 2500K to 6500K
※ Parameters
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Size | Water proof | CRI | Color | Lumen (lm/m) |
| CRI≥95 | |||||||||
| QL-F3528A60TSA-H-12/24-95 | 3528 | 120 | DC12V DC24V | 14.4W/m | 10mm | IP20 | ≥95 | 2500K+6000K | 1100-1200 |
| QL-F3528S60TSA-H-12/24-95 | IP54 | ||||||||
| QL-F3528C60TSA-H-12/24-95 | IP67 | ||||||||
| QL-F3528D60TSA-H-12/24-95 | IP68 | ||||||||
| CRI≥90 | |||||||||
| QL-F3528A60TSA-H-12/24 | 3528 | 120 | DC12V DC24V | 14.4W/m | 10mm | IP20 | ≥90 | 2500K+6000K | 1300-1400 |
| QL-F3528S60TSA-H-12/24 | IP54 | ||||||||
| QL-F3528C60TSA-H-12/24 | IP67 | ||||||||
| QL-F3528D60TSA-H-12/24 | IP68 | ||||||||
| CRI≥80 | |||||||||
| QL-F3528A60T-H-12/24 | 3528 | 120 | DC12V DC24V | 9.6W/m | 10mm | IP20 | ≥80 | 2500K+6000K | 700-750 |
| QL-F3528S60T-H-12/24 | IP54 | ||||||||
| QL-F3528C60T-H-12/24 | IP67 | ||||||||
| QL-F3528D60T-H-12/24 | IP68 | ||||||||
| Remark: X stands for waterproof version, A for IP20 non-waterproof version, C for IP67 version with silicone tube | |||||||||

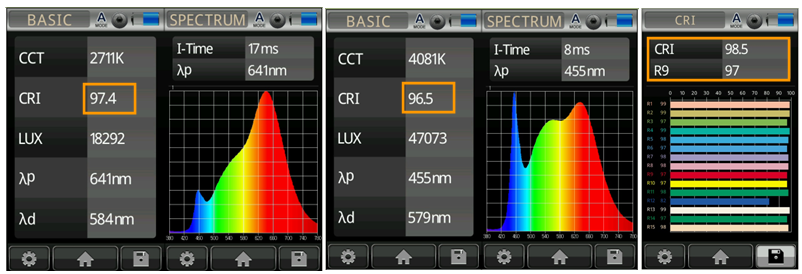

※ Testing Report for Color Rendering

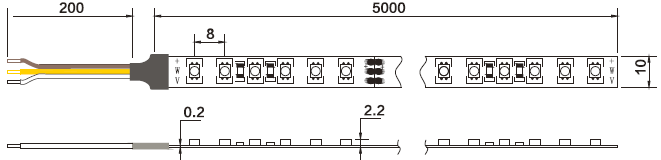

※ Drawings
※ Connections
※ Different Waterproof Version
※ Packing
