LED Type: CRI≥95/90 SMD3528
Input Voltage: DC24V
Color: Warm White, Pure White, Nature White
LED Qty: 70LED/m
Beam Angle: 120 degree
IP Ratio: IP20 Version
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved
※ Features
Features of Angle-Adjustable Strips:
● The Angle can be adjusted to be different degree for special application
※ Parameters
| Model No. | LED Type | LED Qty (m) | Work Voltage | Power | PCB Size | Water proof | CRI | Color | λ(Nm) /(CT:K) | Lumen (lm/m) |
| CRI≥95 | ||||||||||
| QL-F3528A35SA-WW-24-AG95 | 3528 | 70 | DC24V | 7.2W/m | 5+8mm | IP20 | CRI≥95 | Warm White | 2500-2700K | 600-650 |
| QL-F3528A35SA-W-24-AG95 | 3000-3500K | 650-700 | ||||||||
| QL-F3528A35SA-N-24-AG95 | Nature White | 4000-4500K | 700-750 | |||||||
| QL-F3528A35SA-P-24-AG95 | Pure White | 6000-7000K | 750-800 | |||||||
| CRI≥90 | ||||||||||
| QL-F3528A35SA-WW-24-AG | 3528 | 70 | DC24V | 7.2W/m | 5+8mm | IP20 | CRI≥90 | Warm White | 2500-2700K | 650-700 |
| QL-F3528A35SA-W-24-AG | 3000-3500K | 700-750 | ||||||||
| QL-F3528A35SA-N-24-AG | Nature White | 4000-4500K | 750-800 | |||||||
| QL-F3528A35SA-P-24-AG | Pure White | 6000-7000K | 800-850 | |||||||
| CRI≥80 | ||||||||||
| QL-F3528A35-VW-24-AG | 3528 | 70 | DC24V | 4.8W/m | 5+8mm | IP20 | ≥80 | Warm White | 2200-2400K | 450-470 |
| QL-F3528A35-WW-24-AG | 2500-2700K | 470-490 | ||||||||
| QL-F3528A35-W-24-AG | 3000-3500K | 490-510 | ||||||||
| QL-F3528A35-N-24-AG | Nature White | 4000-4500K | 520-540 | |||||||
| QL-F3528A35-P-24-AG | Pure White | 6000-7000K | 550-570 | |||||||
| QL-F3528A35-R-24-AG | / | Red | 620-630 | 190-200 | ||||||
| QL-F3528A35-Y-24-AG | Yellow | 585-595 | 190-200 | |||||||
| QL-F3528A35-B-24-AG | Blue | 455-470 | 110-130 | |||||||
| QL-F3528A35-G-24-AG | Green | 510-525 | 350-400 | |||||||

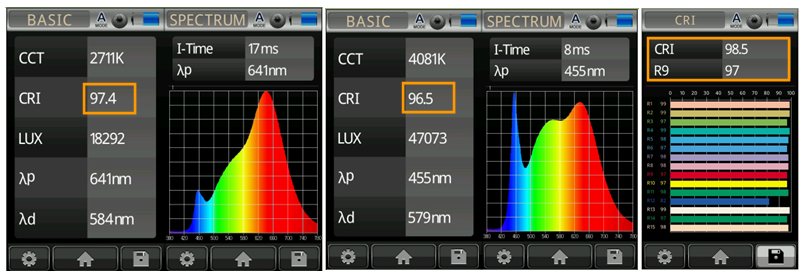

※ Testing Report for Color Rendering

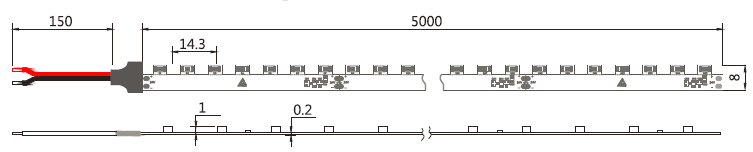

※ Drawings
※ Connections
※ Accessories
※ Packing
