prevnext: 5630 Angle-Adjustable Strips

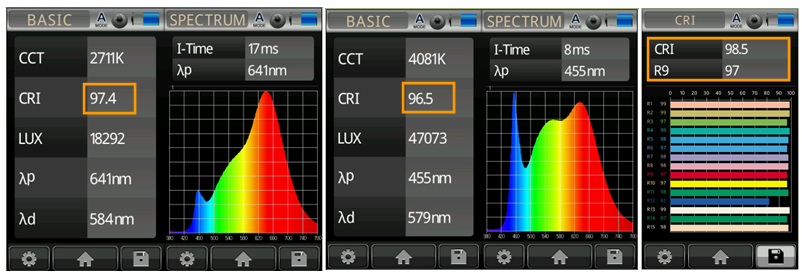

LED Type: CRI≥95/90 SMD5630
Input Voltage:DC24V (with temperature sensor)
Color: Warm White (2700K/3000K), Nature White, Pure White
LED Qty:70LED/m
Beam Angle: 120 degree
IP Ratio: IP20
With 3M 300 strong adhesive tape on the backside
UL, CUL, CE, RoHS approved

Inquiry Wow Customer Question

※ Features

Features of Angle-Adjustable Strips:

● The Angle can be adjusted to be different degree for special application

Features of QL Temperature Sensor Constant Current Strips:

● Constant current version: with stable current, suitable for high quality requirements project.

● DC12V/DC24V input: Can work with any DC12V/DC24V PWM control system.

● Can work with unstable power supply and without damage.

● with temperature Sensor: Can lower the current to protect itself when the temperature is too high.

● Brightness uniform: With same brightness from the first end to the last end for around 10m.

● DC24V version: can work with DC20V to DC30V Input

● DC 12V version: can work with DC10V to DC15V Input

※ Parameters

Model No.	LED Type	LED Qty (m)	Work Voltage	Power	PCB Size	Water proof	CRI	Color	λ(Nm) /(CT:K)	Lumen (lm/m)

CRI≥95, DC24V Input Temperature Sensor Constant Current Version
QL-F5630A35SA-WW-24C-95	5630	70	DC24V	15W/m	5+8mm	IP20	≥95	Warm White	2500-2700K	1400-1450
QL-F5630A35SA-W-24C-95									3000-3500K	1450-1500
QL-F5630A35SA-N-24C-95								Nature White	4000-4500K	1500-1550
QL-F5630A35SA-P-24C-95								Pure White	6000-7000K	1550-1600
CRI≥90, DC24V Input Temperature Sensor Constant Current Version
QL-F5630A35SA-WW-24C	5630	70	DC24V	15W/m	5+8mm	IP20	≥90	Warm White	2500-2700K	1400-1450
QL-F5630A35SA-W-24C									3000-3500K	1450-1500
QL-F5630A35SA-N-24C								Nature White	4000-4500K	1500-1550
QL-F5630A35SA-P-24C								Pure White	6000-7000K	1550-1600
